ST-O 4/800 Grease Trap
Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from wastewater.
Have questions? Call 061 970197
The most common use
- Catering facilities/food industry
- Meat packing facilities, meat processing facilities
- Restaurants, canteens
- Hotels, boarding houses
- Pubs and restaurants
- Fish and chips shops
- Fish processing plants
- Industrial cooking facilities
- Edible oils and margarine production plants
- Canneries
- Fast food production facilities
- Cake shops, bakeries
We offer separators with nominal flow from 1.5 l/s to 15 l/s integrated with desilter chamber
Technical Information
- Nominal flow: 4 l/s
- Tank volume: 3200 ltrs
- Desilter chamber: 800 ltrs
- Material: PE-HD
- Resistant to aggressive fatty acids
- Highly durable
- Easy to clean
- Handles for lifting
- Gas-tight (odor reduction)
- Two manholes: 950 X 750 mm
- Sold with cover PKP 950
Additional Equipment
- Extension shaft NSP 950
- Overflow alarms and fat layer thickness alarms
- Round adapter for cast iron manhole- version A
- Solenoid valve operated anti-foam system
- Additional input for bottom sediment suction without removing the cover (elimination of unpleasant odors).

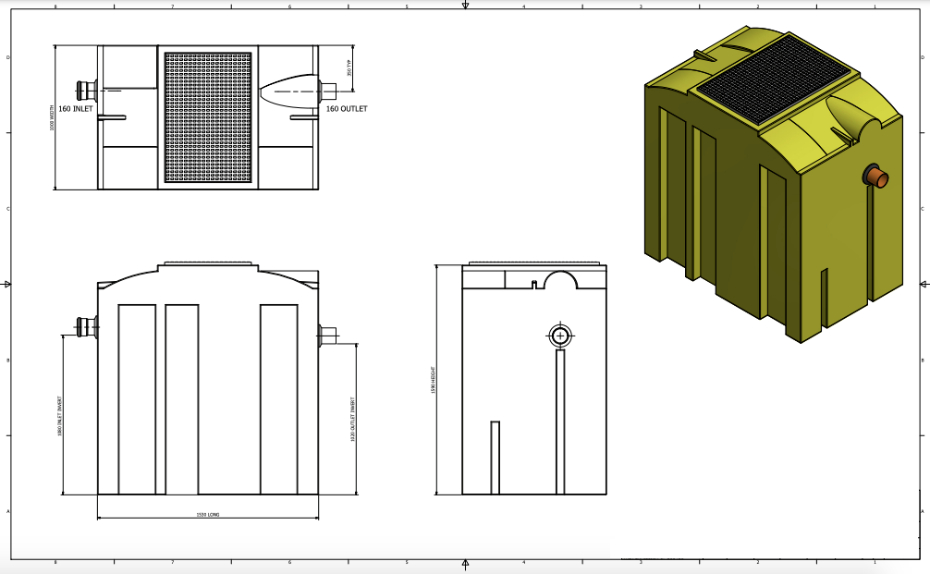

| Name of the group | Symbol | Nominal flow [l/s] | Tank volume[l] | Inlet/outlet diameter[mm] | Inflow height[mm] | Outflow height[mm] | Tank dimensions [mm] | The Number of manholes(mm) | ||
| d1 | h1 | h2 | Length E | Width F | Height K | |||||
| GREASE SEPARATOR WITH DESILTER CHAMBER | ST-O 4 /800 | 4 | 3200 | 160 | 1140 | 1090 | 2250 | 1000 | 1600 | 2 |
Accessories
Cover PKP 950
Size
Dn = 0.58
Extension Shaft NSP 950
SizeL=0.960 m, I=0.760 m, H=04.25 m
Extension Shaft NSO 600
SizeDn=0.60 m, H=0.40 m
Cover PKO 600
Size
Dn = 0.58
