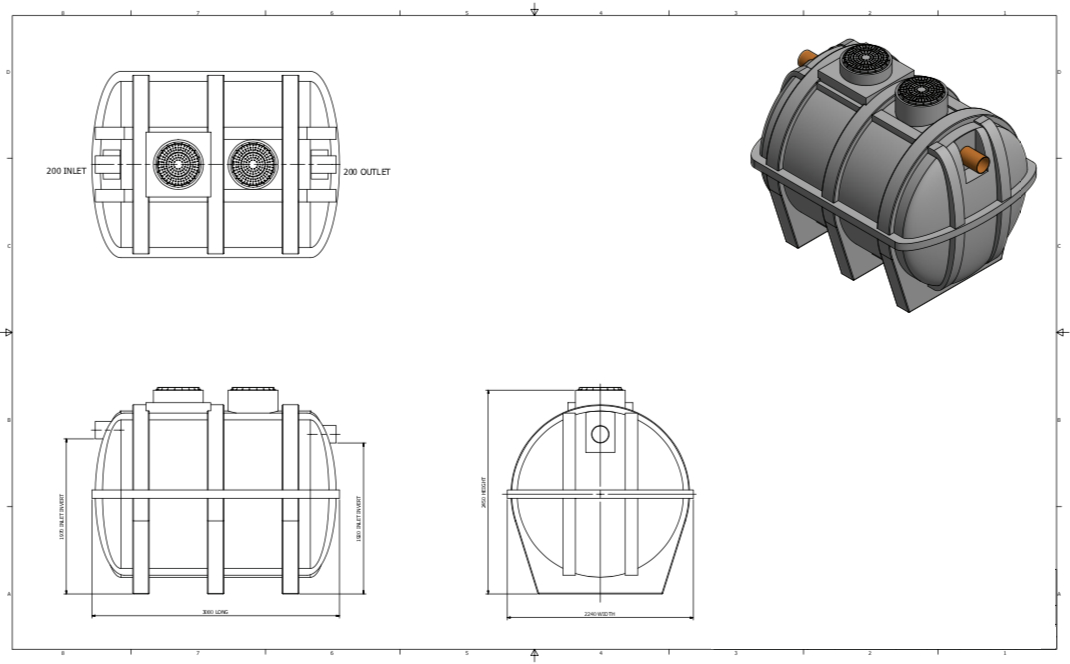

ST-O 15/5000 Grease Trap
Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from wastewater.
Have questions? Contact us or Call 061 970197
Properties
- Nominal flow: 15 l/s
- Tank volume: 10,000 ltrs
- Desilter chamber: 5000 ltrs
- Material: PE-HD
- Manhole – 950x750mm
- Resistant to aggressive fatty acids
- Highly durable
- Easy to clean
- Handles for lifting
- Gas-tight (odor reduction)
Optional
- We can supply a separator for starch with automatic extraction.
- Solenoid valve operated anti-foam system
- Electrically operated valve for switching on the anti-foam system
- Option for extraction of sediment without removing the cover (elimination of unpleasant odors)
- Overflow alarms and fat layer thickness alarms
| Symbol | Nominal flow [l/s] | Tank volume[l] | Inlet/outlet diameter[mm] | Inflow height[mm] | Outflow height[mm] | Tank dimension[mm] | desilter chamber [l] | Separation chamber[l] | Number of manholes | ||
| C/D | A | B | Length E | Width F | Height K | H | I | G | |||
| ST-O 15/5000 | 15 | 10000 | 200 | 1970 | 1920 | 3080 | 2240 | 2450 | 5000 | 5000 | 2 |
Accessories
Cover PKP 950
Size
Dn = 0.58
Extension Shaft NSP 950
SizeL=0.960 m, I=0.760 m, H=04.25 m
Extension Shaft NSO 600
SizeDn=0.60 m, H=0.40 m
Cover PKO 600
Size
Dn = 0.58
