Grease and Starch Separator

Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from wastewater.

Have questions? Call 061 970197

Purpose

Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from waste water. The most popular usage:

Catering facilities/food industry
Meat packing facilities, meat processing facilities
Restaurants, canteens
Hotels, boarding houses
Pubs and restaurants
Fish and chips shops
Fish processing plants
Industrial cooking facilities
Edible oils and margarine production plants
Canneries
Fast food production facilities
Cake shops, bakeries

We offer separators with nominal flow from 1.5 l/s to 15 l/s integrated with desliter chamber.

Options

Extension shaft: NSO 600, NSP 950
Round adapter – version A, B, C
Overflow and fat layer thickness alarms
Anti-foam installation
Solenoid valve for switching on anti-foam installations
Additional input for bottom sediment suction without removing the lid (eliminating odors)

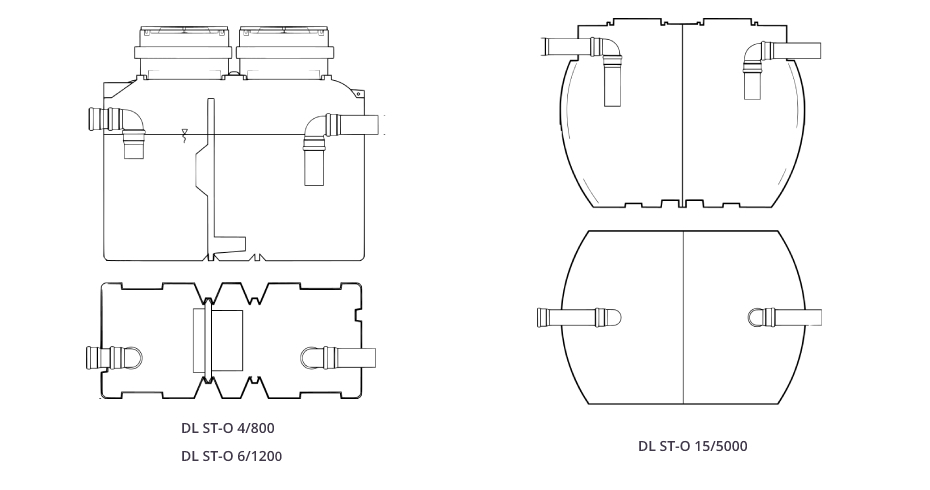

Technical Information

Symbol	Flow rate[1/s]	Tank volume[l]	Inlet/outlet diameter[mm]	Inflow hight[mm]	Outflow hight[mm]	Tank dimension[mm]			Number of manholes	Cover
			D	h1	h2	Length	Depth	Height
ST-O 1,5/200	1,5	540	110	540	500	1300	1000	780	1	PKO 600
ST-O 2/420	2	1550	110	710	660	1530	1000	1220	1	PKO 950
ST-O 3/600	3	2100	160	1020	1080	1530	1000	1590	1	PKO 950
ST-O 4/800	4	3200	160	1090	1090	2250	1000	1600	1	PKO 950
ST-O 6/1200	6	4300	200	1270	1220	2400	1200	1800	2	PKO 950
ST-O 15/5000	15	10000	200	1970	1920	3080	2240	2450	2	PKO 600

Accessories

Cover PKP 950

Size
Dn = 0.58

Extension Shaft NSP 950

Size
L=0.960 m, I=0.760 m, H=04.25 m

Extension Shaft NSO 600

Size
Dn=0.60 m, H=0.40 m

Cover PKO 600
