ST-O 2/420 Grease Trap
Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from wastewater.
Have questions? Contact us or Call 061 970197
Properties
- Nominal flow: 2 l/s
- Tank volume: 1550 ltrs
- Desilter chamber: 420 ltrs
- Material: PE-HD
- One manhole – 950x750mm
- Resistant to aggressive fatty acids
- Highly durable
- Easy to clean
- Handles for lifting
- Gas-tight (odor reduction)
Optional
- Extension shaft NSP 950
- Overflow alarms and fat layer thickness alarms
Purpose
Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from wastewater.

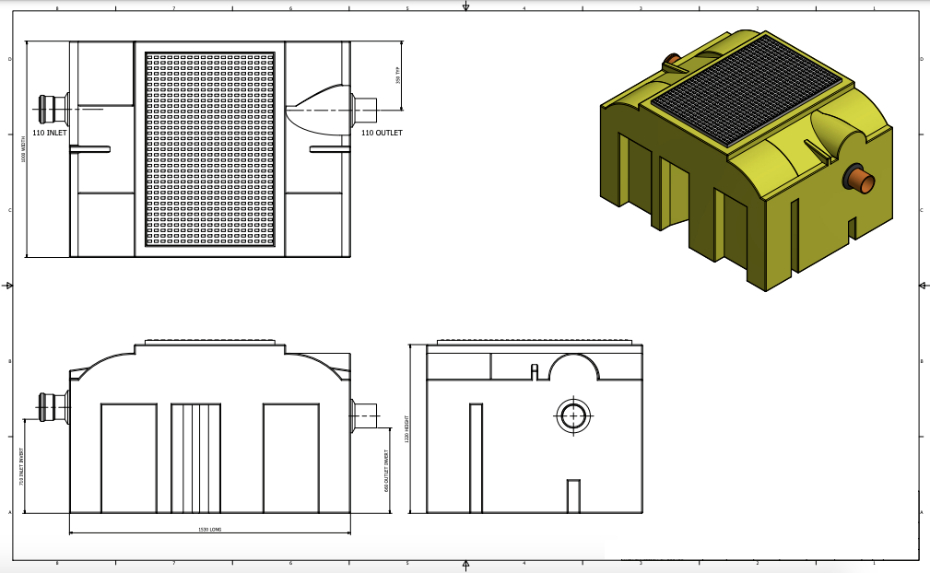

| Symbol | Nominal flow [l/s] | Tank volume[l] | Inlet/outlet diameter[mm] | Inflow height[mm] | Outflow height[mm] | Tank dimension[mm] | desilter chamber [l] | Separation chamber[l] | Number of manholes | ||
| C/D | A | B | Length E | Width F | Height K | H | I | G | |||
| ST-O 2/420 | 2 | 1550 | 110 | 710 | 660 | 1530 | 1000 | 1220 | 420 | 480 | 1 |
Cover PKP 950
Size
Dn = 0.58
Extension Shaft NSP 950
SizeL=0.960 m, I=0.760 m, H=04.25 m
Extension Shaft NSO 600
SizeDn=0.60 m, H=0.40 m
Cover PKO 600
Size
Dn = 0.58
