Goslyn Automatic Grease Trap – GOS20
Goslyn Automatic Grease Trap GOS20 is the easiest and most effective Automatic Grease Removal Device to operate and maintain. Made from 304 Stainless Steel and designed for waste-water flow rates of 0.5 litres/second.
Have questions? Contact us or Call 061 970197
GOS20 - Automatic Grease Removal Unit Features
- Heavy duty 2.5 mm, 304 stainless steel exterior construction
- Neoprene seals on top/base of unit
- The Goslyn™ meets (and exceeds) the industry codes and standards
- 220V/50hz Immersion heater (CE listed) to keep effluent warm during idle periods
- Strainer basket to prevent solid debris from entering the drain pipes
- Easy access hinged lid compartments
- Self-closing drain valve included
- Two oil collection cassettes included
- No moving parts
- Ten year limited warranty on all stainless components
- One year limited warranty on all other components
Goslyn Grease Trap Demo and Maintenance

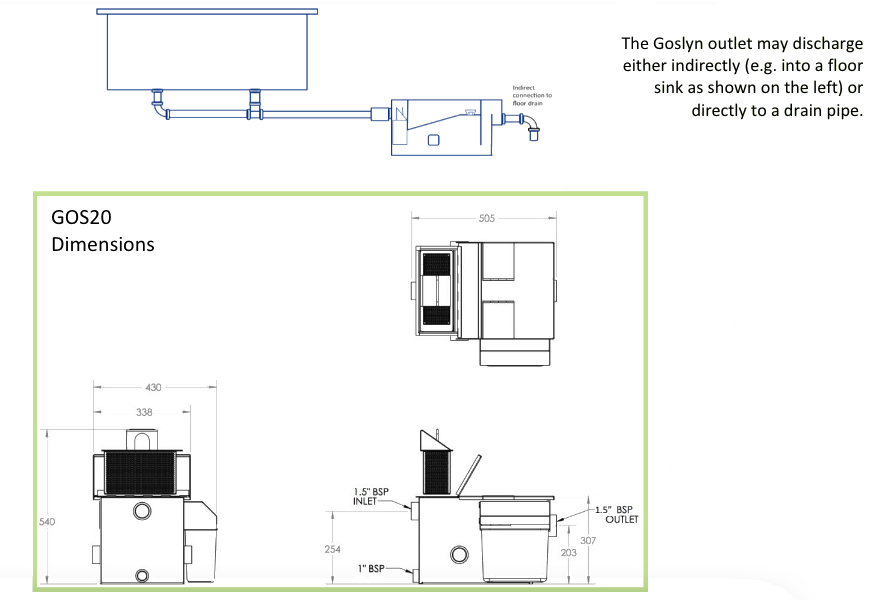

GOS20 Dimensions
| Model: | GOS20 |
|---|---|
| Shipping dimensions | 52 cm X 52 cm X 40 cm |
| Shipping weight | 26 kg |
| Required clearances | • Headroom needed above strainer basket: 30.5 cm • 1.5” inlet • 2.0” outlet • Access to front oil cassette • Access to hinged lid for oil valve |
| Electrical requirements: | 240 Volt, 0.5kw, 2 Amps within 5’ of unit |
GOS20 automatic grease removal unit / immiscible liquids separator which continuously operates under hydro-static pressure, with no moving parts. Made from 2.5mm, 304 stainless steel and complete with an immersion heater and two oil recovery cassettes. It has an effluent flow rate capacity of 0.50 litres/second and meets the industry codes and standards UL, IPC, UPC, IRC, NPC, ASME A112.14.3, ASME A1123.14.4, PDI G101, and CSA B481.1
